Diesel generators

22.0 kVA - 66.0 kVA

Features of the unit

Unit Specification Sheets

Built-in generator (open)

FD 20 B-F

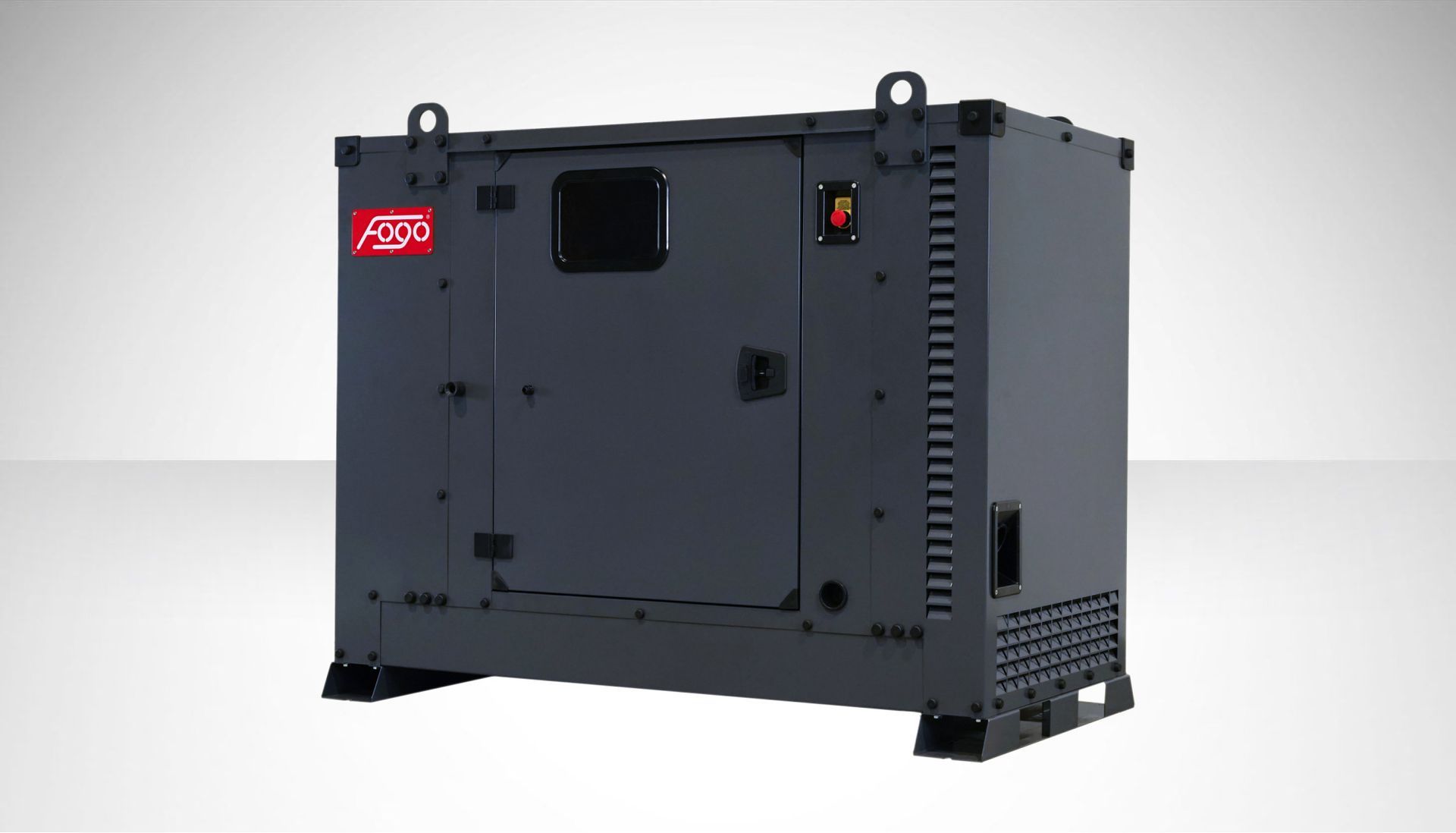

Built-in generator (silenced)

FD 20 B-C

• Digital voltage regulation +/-0.5%
• Three-phase voltage control
• Low disturbance level THD <3.5%
• Alternator short circuit capacity 270% In (optionally 300%)
• Class H insulation
• Protection index IP23

• Performance class G3 (according to ISO 8528-5)
• Ready to load just after start
• AMF and MRS functionality and protection
• Autonomy 42,6 h with 75% load
• Compact design
• Forklift manouvable from the front and side wall

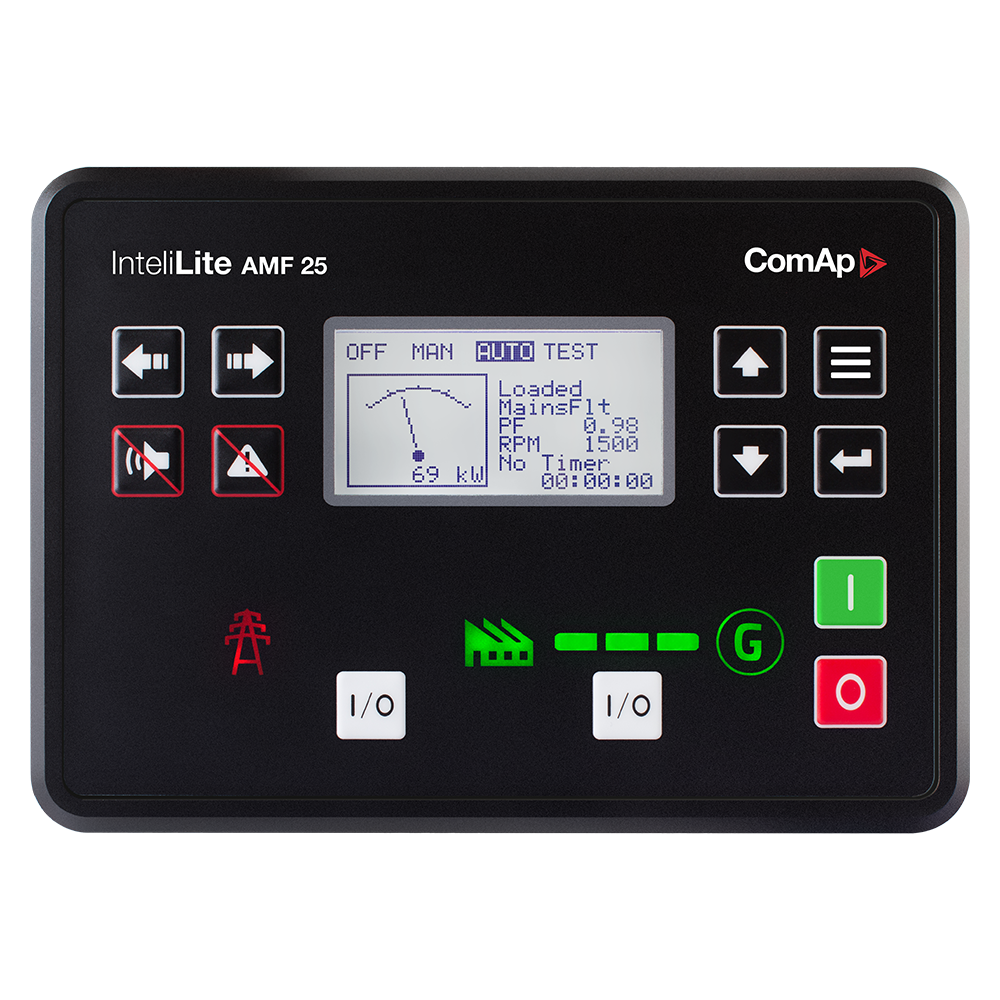

ComAp driver

InteliLite AMF 25

• Controller type: ComAp InteliLite AMF 25
•  Support of Dual AMF/MRS applications
•  Direct communication with EFI engines
•  Total remote monitoring and control
•  Intuitive operator interface, adjustable Main Screen
•  Real time clock
•  Comprehensive history log with up to 350 events
•  3 phase true RMS current and voltage measurement
•  Both mains and generator voltage detection
•  Active/Reactive Power and Power Factor per phase measurement
•  Run Hours counter with source selector
•  3 maintenance timers (counting even under zero)
•  Multipurpose flexible timers (also for rental

•  Battery voltage measurement
•  Complete engine and alternator protection
•  CAN modules support
•  USB port on-board
•  2 slots for plug-in modules
•  Plug-in module concept for more capabilities (RS232, RS485, Ethernet, GPRS, 4G/LTE, Modbus, SNMP, emails, SMS, I/Os)
•  Cloud-based monitoring and control via WebSupervisor) (optional module required)
•  Geofencing and tracking via WebSupervisor (optional module required)
•  Control and monitoring over SMS (GSM module required)
•  3 levels of password protection
•  In-built PLC, complemented with a monitoring/debugging tool, for additional functionality, if required
•  Spare inputs and outputs available by default: binary input – 2, binary output – 1, analogue input – 3,
•  A version for low temperature is also available
