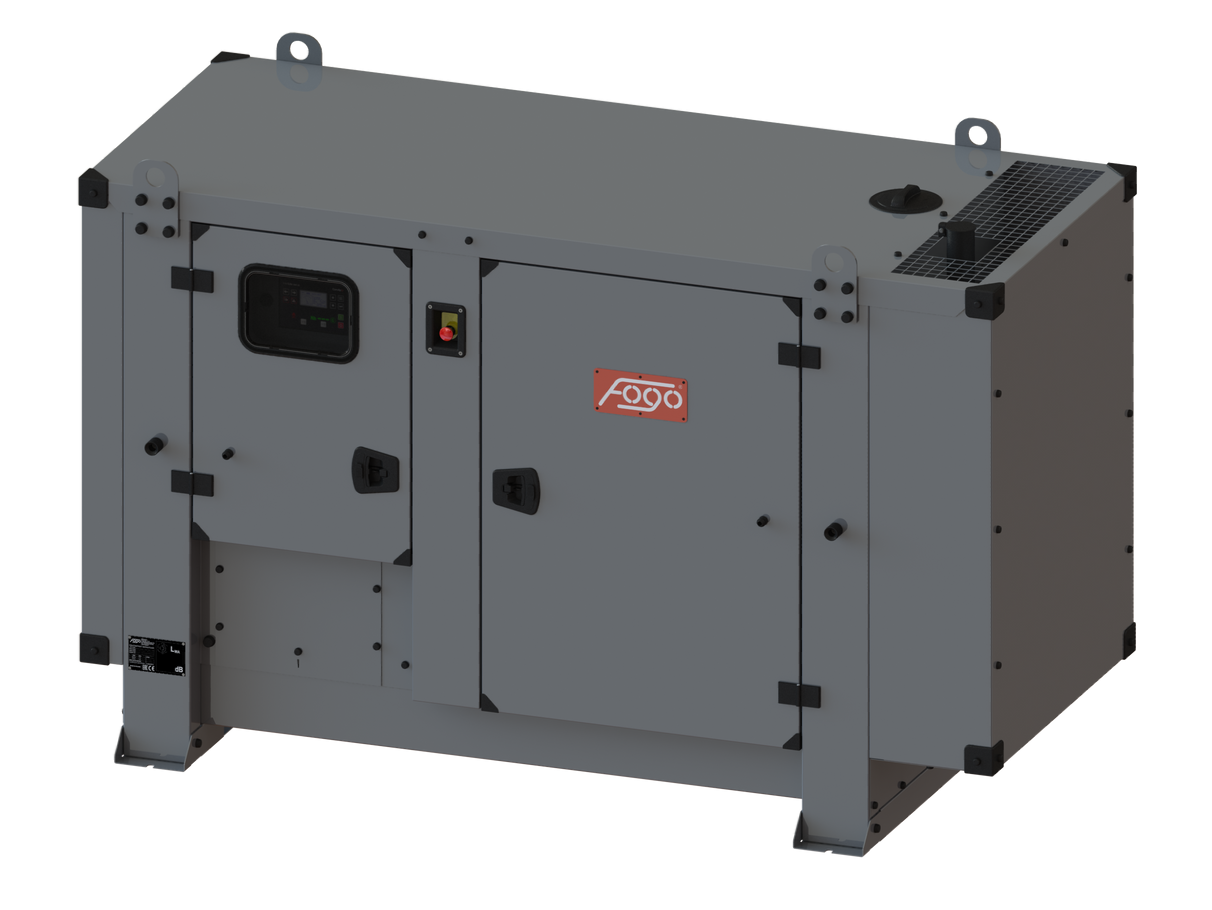

FD 100 F-F / FD 100 F-Q

Diesel generators 85.0 kVA - 271.0 kVA

Ask about this generator

Contact us

Features of the unit

Engine Yuchai D110R0-MP-ETA-448
Emission standard stage II
Fuel system Mechanical pump
Speed control electronic
Frequency 50Hz
ESP maximum power 110.0 kVA / 88.0 kW
PRP rated power 100.0 kVA / 80.0 kW
Fuel tank 370 L
Alternator A4Gen KAL224M5
Performance class class G3 (acc. ISO 8528-5)

Characteristics

  • Electronic voltage regulation +/- 1 %
  • Low disturbance level THD <2.5%
  • Class H insulation
  • Protection index IP23
  • Compact design
  • Performance class G3 (according to ISO 8528-5)
  • Ready to load just after start
  • AMF and MRS functionality and protection
  • Autonomy 19,3 h with 75 % load
  • Forklift manouvable from the front and side wall

Unit Specification Sheets

ComAp driver

InteliLite AMF 25

Controller type: ComAp InteliLite AMF 25
Support of Dual AMF/MRS applications
Direct communication with EFI engines
Total remote monitoring and control
Intuitive operator interface, adjustable Main Screen
Real time clock
Comprehensive history log with up to 350 events
3 phase true RMS current and voltage measurement
Both mains and generator voltage detection
Active/Reactive Power and Power Factor per phase measurement
Run Hours counter with source selector
3 maintenance timers (counting even under zero)
Multipurpose flexible timers (also for rental)
Battery voltage measurement
Complete engine and alternator protection
CAN modules support
USB port on-board
2 slots for plug-in modules
Plug-in module concept for more capabilities (RS232, RS485, Ethernet, GPRS, 4G/LTE, Modbus, SNMP, emails, SMS, I/Os)
Cloud-based monitoring and control via WebSupervisor) (optional module required)
Geofencing and tracking via WebSupervisor (optional module required)
Control and monitoring over SMS (GSM module required)
3 levels of password protection
In-built PLC, complemented with a monitoring/debugging tool, for additional functionality, if required
Spare inputs and outputs available by default: binary input – 2, binary output – 1, analogue input – 3
A version for low temperature is also available

Yuchai engine

D110R0-MP-ETA-448

Manufacturer Yuchai
Type D110R0-MP-ETA-448
Made in China
Engine power 90,0 kW
Emission standard Stage II
Rotation per minute 1500 rpm
Engine governor electronic
Governor class G3 (wg ISO 8528-5)
Displacement 4,8 l
No of cylinder 4
Fuel system Mechanical pump
Electrical system 12V
Cooling system capacity 26,3 l
Oil pan capacity 17,0 l
Fuel type Diesel (EN 590)

A4Gen alternator

KAL224M5

Manufacturer A4Gen
Type KAL224M5
Made in China
Nominal voltage 400V
Nominal power factor (cos φ) 0,8
Ambient temperature, altitude 40 ºC, 1000m n.p.m.
Nominal Power 100.0 kVA
Protection index IP 23
No of bearing single bearing
Coupling direct
Technology brushless
Short circuit maintaining capacity lack
Efficiency 91,5 %
Insulation class H
Total harmonic content THD <2,5 %
Reactance Xd'' 9,6 %
Voltage regulator type SX460
Voltage measurement 1 phase
Voltage accuracy +/- 1 %
AVR supply system shunt
AVR supply optional PMG
